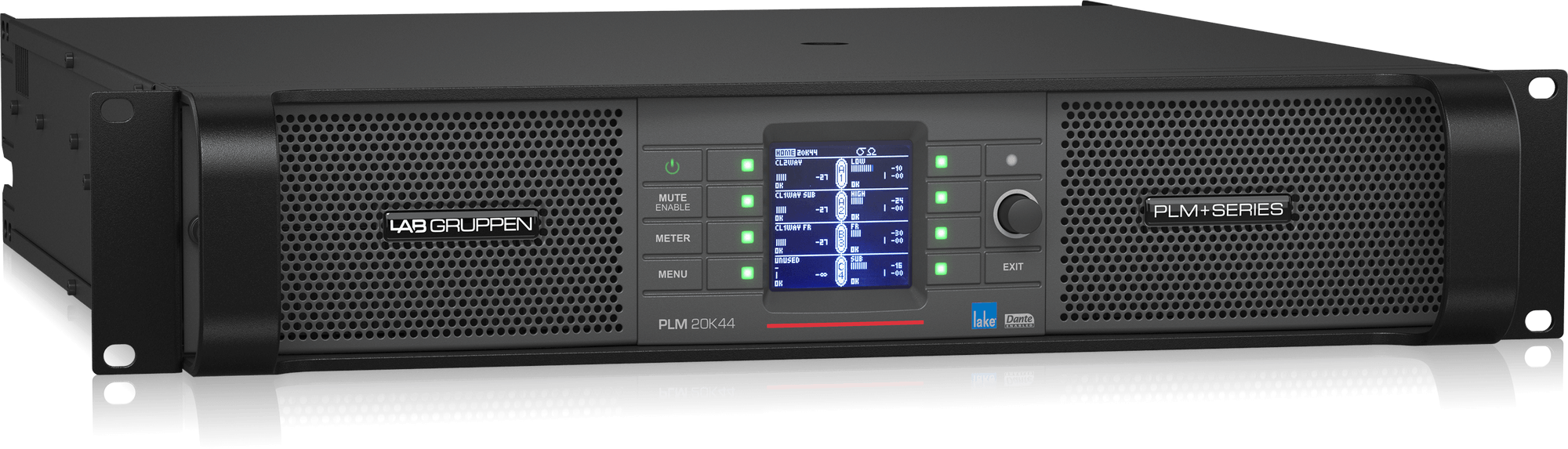

Lab Gruppen Lab Gruppen - Amplificateur PLM 20K44 BP
€--,-- Sans les taxes
en rupture de stock
20,000 Watt Amplifier with 4 Flexible Output Channels, LAKE Digital Signal Processing and Dante Digital Audio Networking for Touring Applications Lire plus
- 24/7 support
- in house training
- in house service centre
- 055 538 66 88
Spécifications
Marque:
Lab Gruppen
Numéro de l'article:
000-F6624-00010
Disponibilité:
en rupture de stock
Informations
20,000W Amplifier with 4 Flexible Output-Channels on Binding Post Connectors, Lake Digital Signal Processing and Digital Audio Networking for Touring Applications
- 20,000 Watt amplifier with 4 flexible output channels and up to 5,900 Watts channel output for touring applications
- Lake digital signal processing for unparalleled loudspeaker management and system control
- Integrated 8x8 channels of dual redundant Dante* digital audio networking with AES67 support
- 4 x 4,400 Watts into 2 Ohms, 4 x 5,000 Watts into 2.67 Ohms, 4 x 4,400 Watts into 4 Ohms, 4 x 2,300 Watts into 8 Ohms, 4 x 1,150 Watts into 16 Ohms, 4 x 3,300 Watts into Hi-Z 70 V, 4 x 4700 Watts into Hi-Z 100 V
- Proven and reliable Class-TD output stage with proprietary Intercooler high-efficiency cooling system
- Rational Power Management (RPM) provides total flexibility to allocate available power across all 4 output channels
- Best-in-class Power Factor Correction (PFC) with Current Draw Modelling reduces running costs and minimizes environmental impact
- Under-Voltage Limiting (UVL) for continued operation during severe mains supply voltage drops
- Dedicated on-board surveillance and load monitoring for complete peace of mind
- Redundant audio inputs and on-board system surveillance for full system security

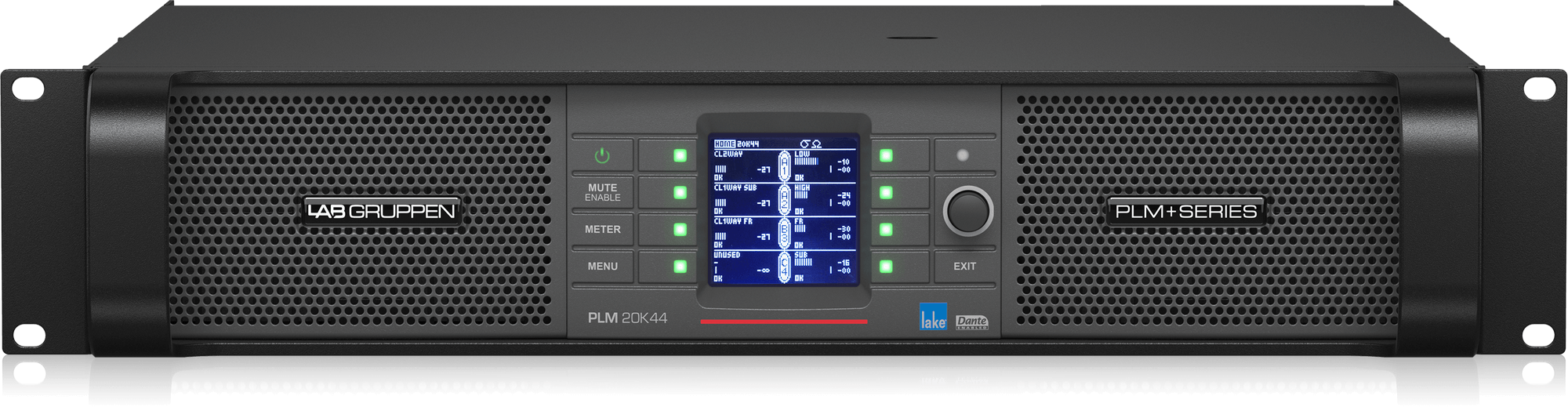

- Backlit, white-on-black front panel display and menu navigation buttons
- 100 user presets for simple and efficient system configuration and set-up
- 3 front-to-rear airflow fans with temperature control for optimal speed and reduced noise
- 4 "Lake Class" analog input channels with Iso-Float ground isolation
- 4 input channels of AES/EBU (AES3) digital audio supporting all standard sample rates up to 192 kHz with 24-bit resolution

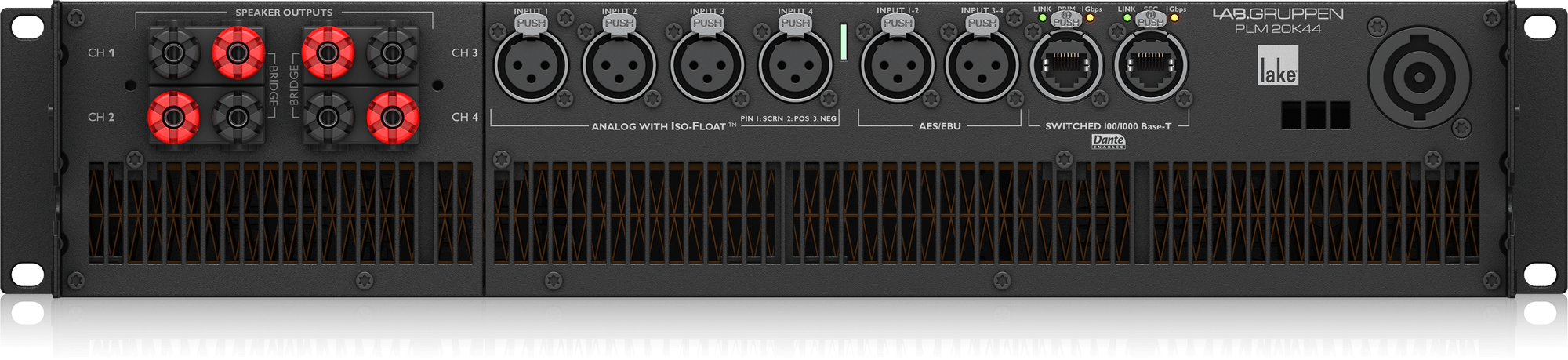

- 2 Neutrik etherCON* RJ-45 ports provide dual redundant Dante interfaces and remote configuration via Lake Controller and Dante Controller software
- Balanced analog and AES/EBU audio inputs on Neutrik* XLR connectors
- Rugged binding post output connectors
- Detachable Neutrik powerCON* cable rated at 250 V / 32 A
- Removable dust filter grilles for increased air circulation
- Rugged 2U rackmount chassis for durability in touring applications
