NEW

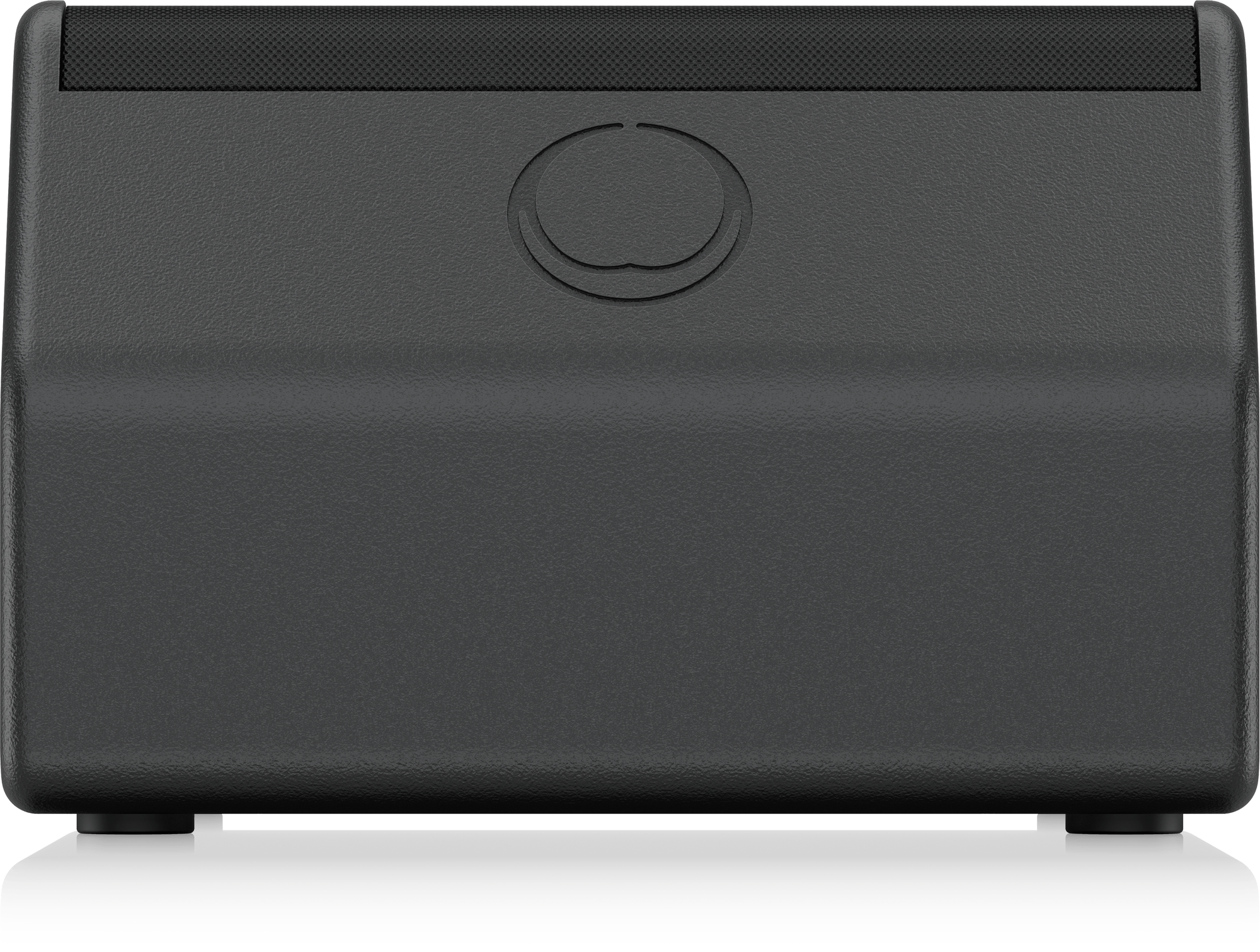

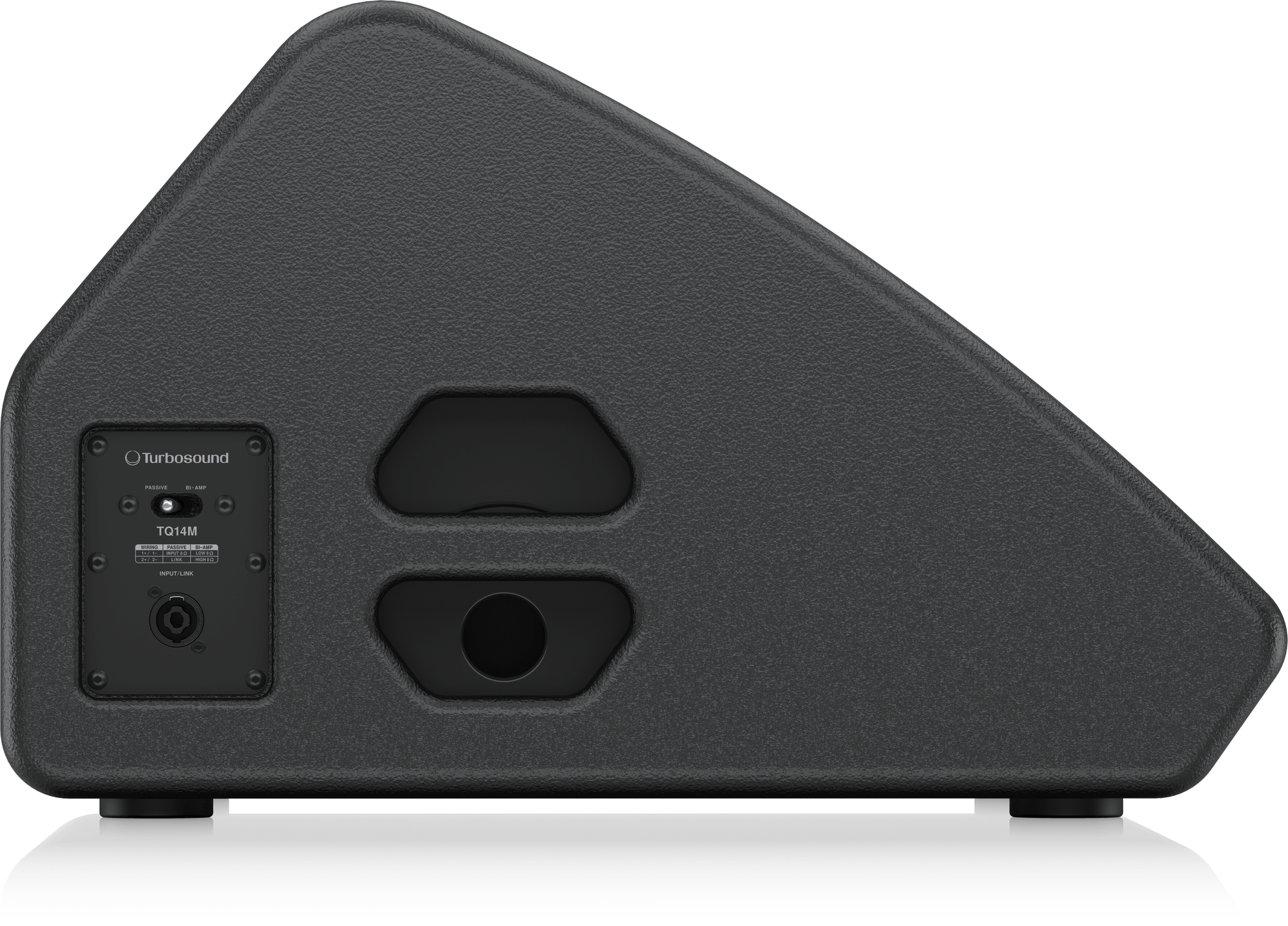

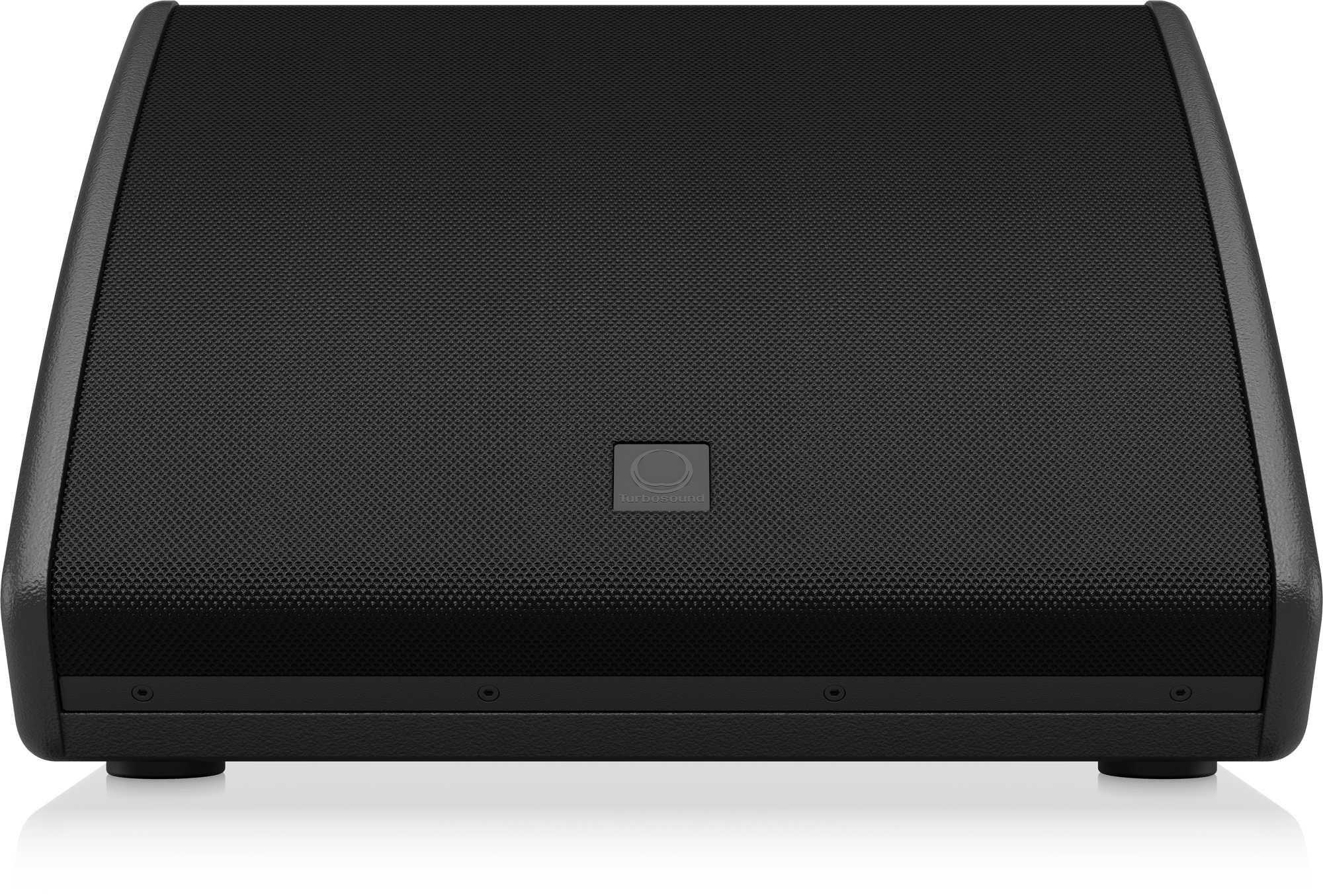

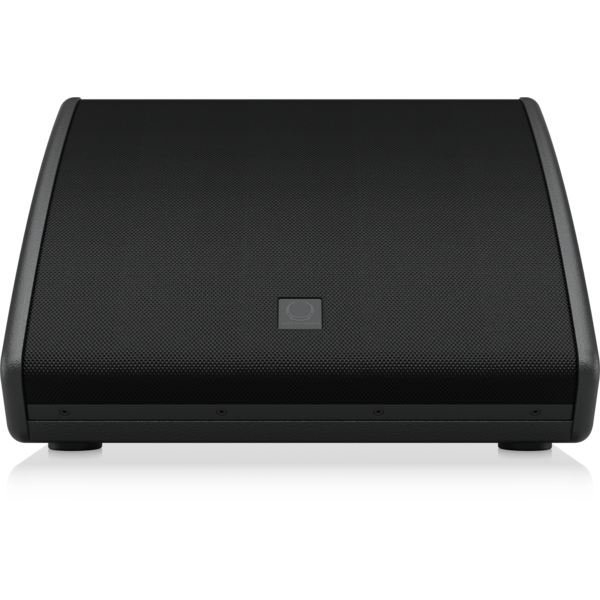

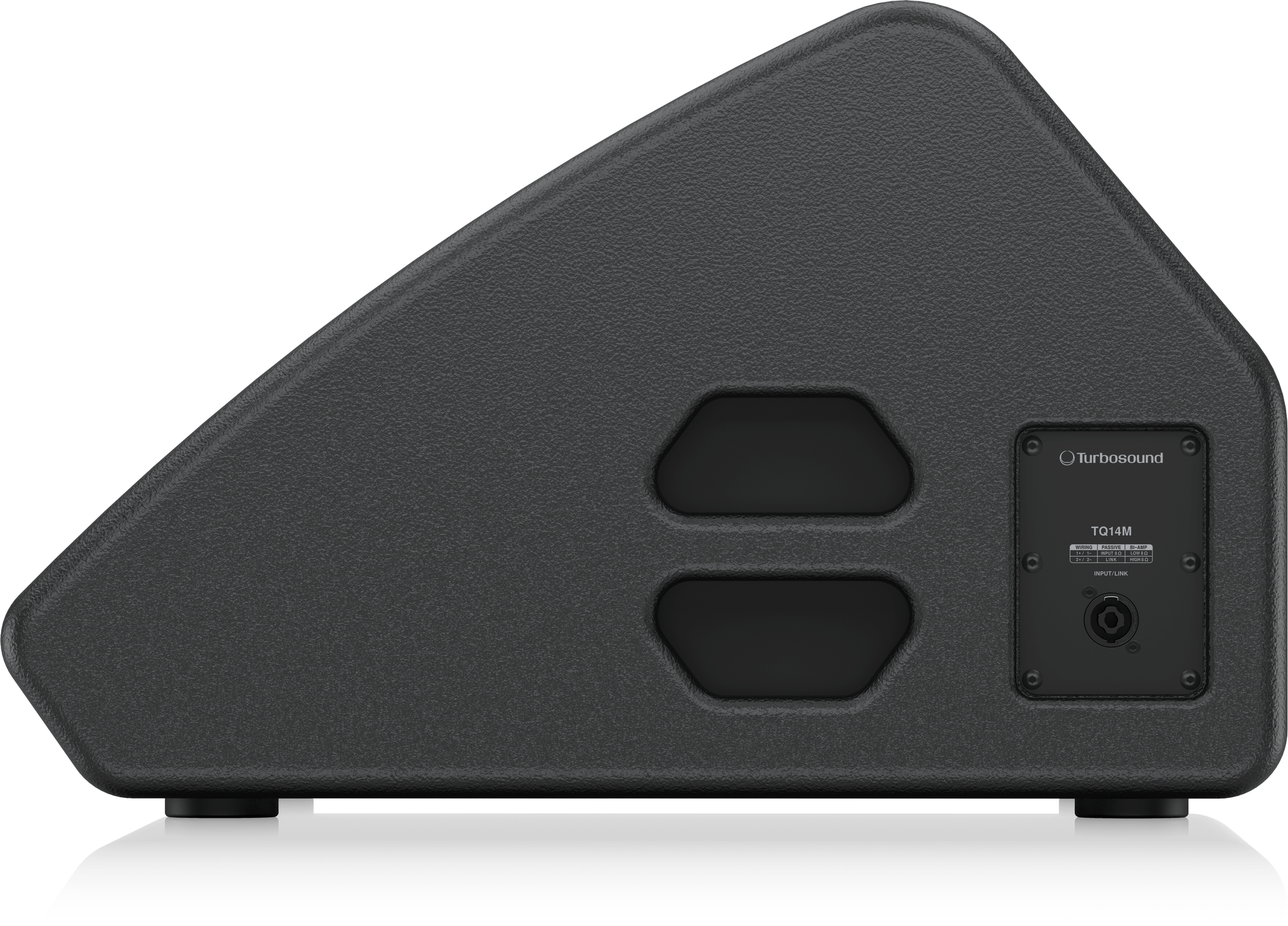

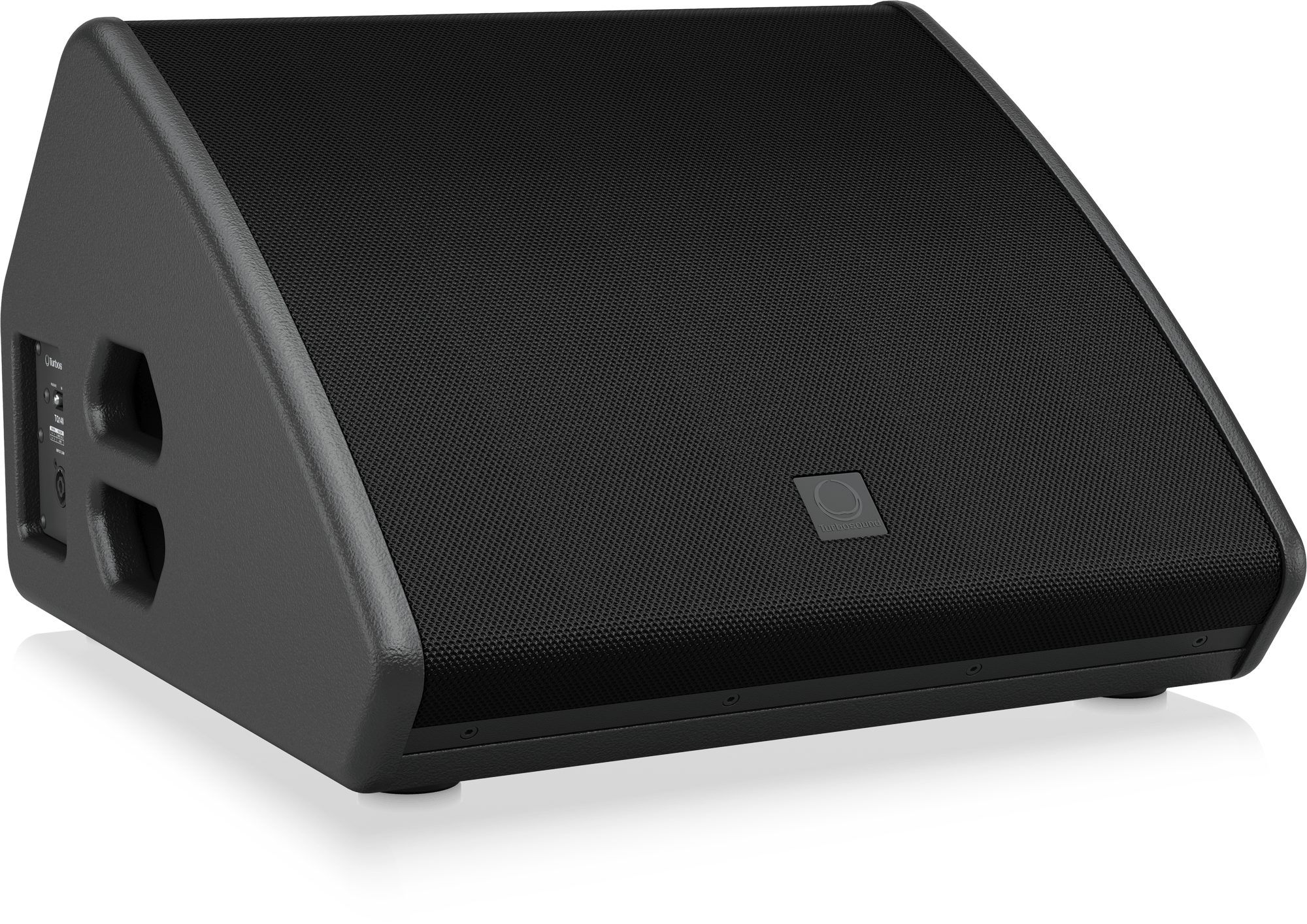

Turbosound TQ14M
Out of stock
Co-axial 2 Way 14" Stage Monitor for Touring Applications Read more
- 24/7 support
- in house training
- in house service centre
- 055 538 66 88
Specifications
Brand:
Turbosound
Flying Hardware:
-
Wiring:
Passive: Pins 1+ / 1- input, pins 2+ / 2- link Bi-Amp: Pins 1+ / 1- LF input / link, pins 2+ / 2- HF input / link
Crossover Type:
Passive or Bi-Amp
impedance:
8 Ω
Warranty:
Weight:
20.5 kg
Dimensions:
359 x 530 x 563 mm
Enclosure:
12 mm and 15 mm (1/2" and 5/8") birch plywood
Accessories:
-
Connectors:
Output power:
480 W continuous
Maximum SPL:
137 dB (passive mode) 138 dB (bi-amp mode)
Nominal Dispersion:
40 H x 60 V
Frequency Response:
60 Hz - 18 kHz
Transducers:
1 x 13.5" (340 mm) Co-axial LF driver 1 x 1.4" (36 mm) / 3" (72 mm) Voice coil HF compression driver
Configuration:
Two way, Passive or Bi-Amp
Article number:
0313-AIR86-000
Availability:
Out of stock
Information
Co-axial 2 Way 14" Stage Monitor for Touring Applications
- 2 way full range loudspeaker for Tour and Live Sound applications
- 480 Watts continuous, 1,920 Watts peak power
- Carbon fibre loaded 14" neodymium motor low frequency driver
- Titanium dome 1.4" exit, 3" voice coil, neodymium motor compression driver
- Low profile design to maximise audience sight lines
- Low distortion waveguide provides 60° H x 40° V dispersion
- Switchable passive/bi-amp operation for flexibility of use
- 15 mm (5/8") plywood enclosure
- IP44 dust and water ingress protection
- Weather-resistant enclosure construction with durable semi-matte black paint finish
