Turbosound TQ 12m

€--,-- Out of stock
Co-axial 2 Way 12" Stage Monitor for Touring Applications Read more
  • 24/7 support
  • in house training
  • in house service centre
  • 055 538 66 88

Specifications

Brand:
Turbosound
Flying Hardware:
--
Wiring:
Passive: Pins 1+ / 1- input, pins 2+ / 2- link Bi-Amp: Pins 1+ / 1- LF input / link, pins 2+ / 2- HF input / link
Crossover Type:
Passive or Bi-Amp
impedance:
8 Ω
Warranty:
Weight:
17.8 kg
Dimensions:
335 x 450  x 535 mm
Enclosure:
12 mm and 15 mm (1/2" and 5/8") birch plywood
Accessories:
-
Connectors:
2 x Neutrik speakON NL4
Output power:
430 W continuous
Maximum SPL:
137 dB (passive mode) 138 dB (bi-amp mode)
Nominal Dispersion:
40 H x 60 V
Frequency Response:
69 Hz - 18 kHz
Transducers:
1 x 12" (315 mm) Co-axial LF driver 1 x 1.4" (36 mm) / 3" (72 mm) Voice coil HF compression driver
Configuration:
Two way, Passive or Bi-Amp
Article number:
0313-AIQ86-000
Availability:
Out of stock

Information

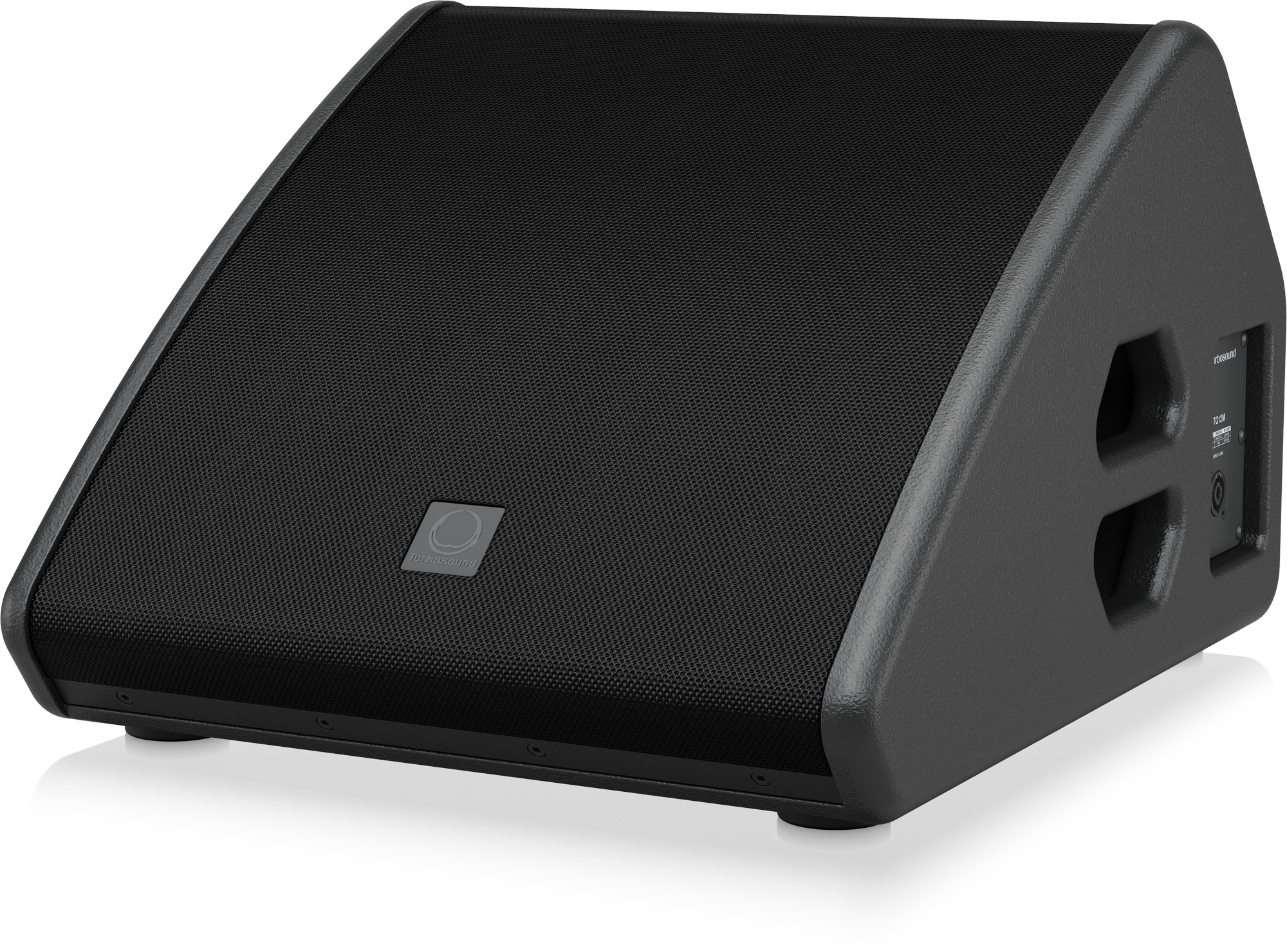

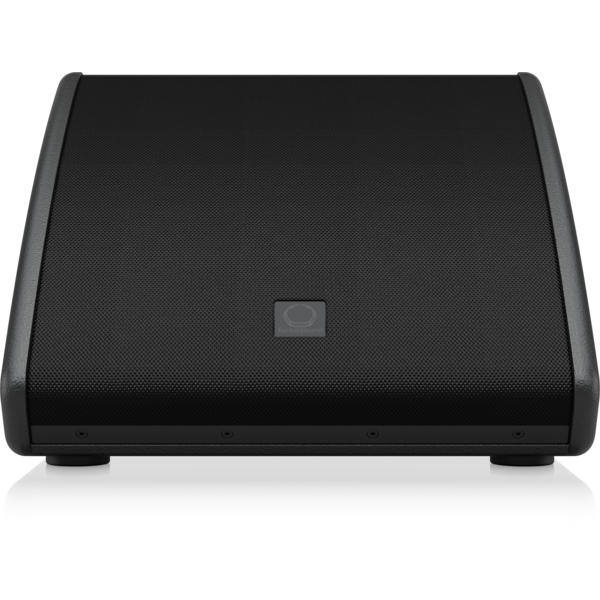

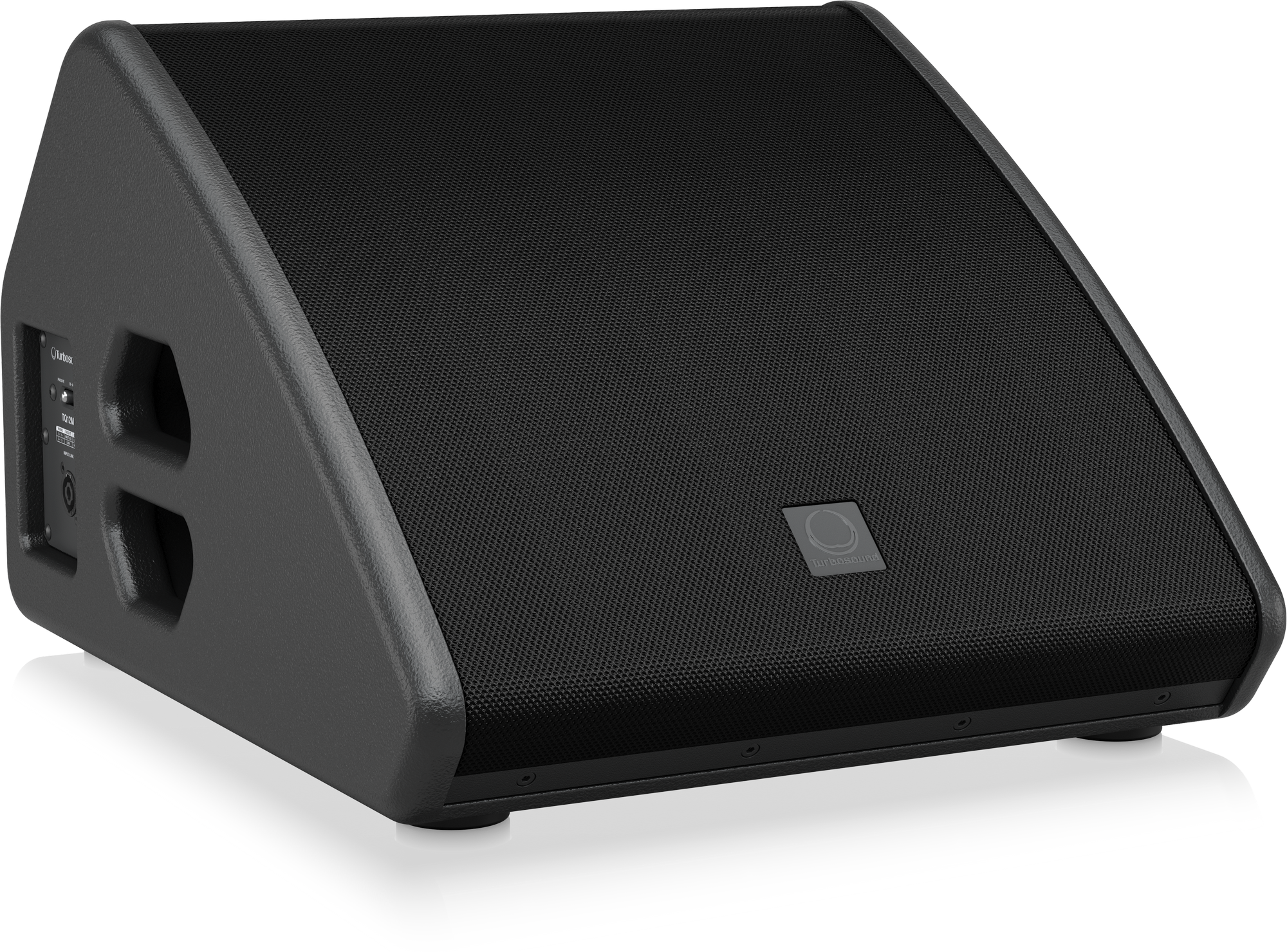

The TQ12M is a high-performance loudspeaker from Turbosound, designed for live performances and stage monitoring. It offers a 1,720 Watt power handling capability with a 12" neodymium low-frequency driver and a 1.4" neodymium compression driver, ensuring clear, powerful sound. The speaker is optimized with FEM and features a custom horn that provides broad coverage and consistent clarity.

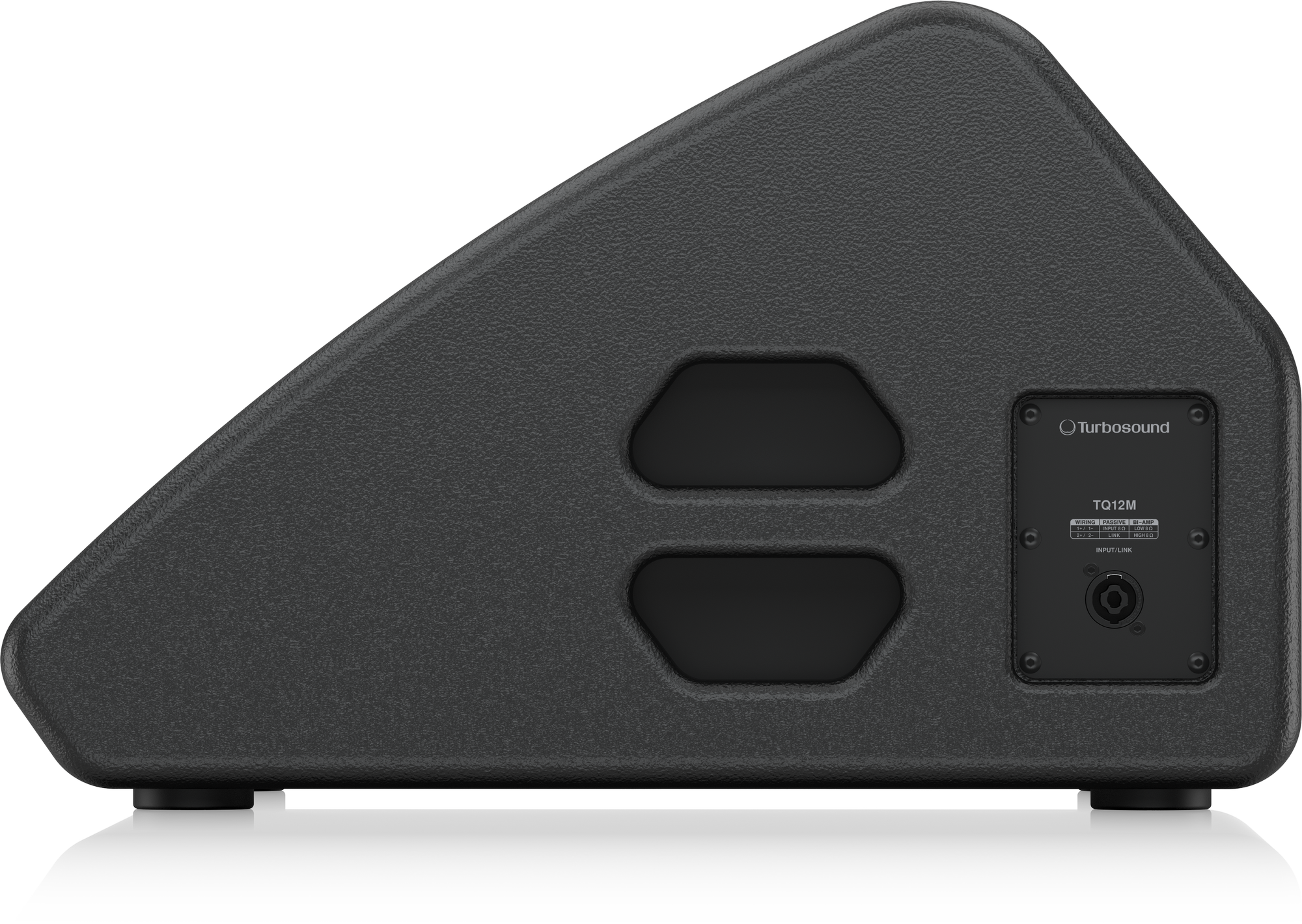

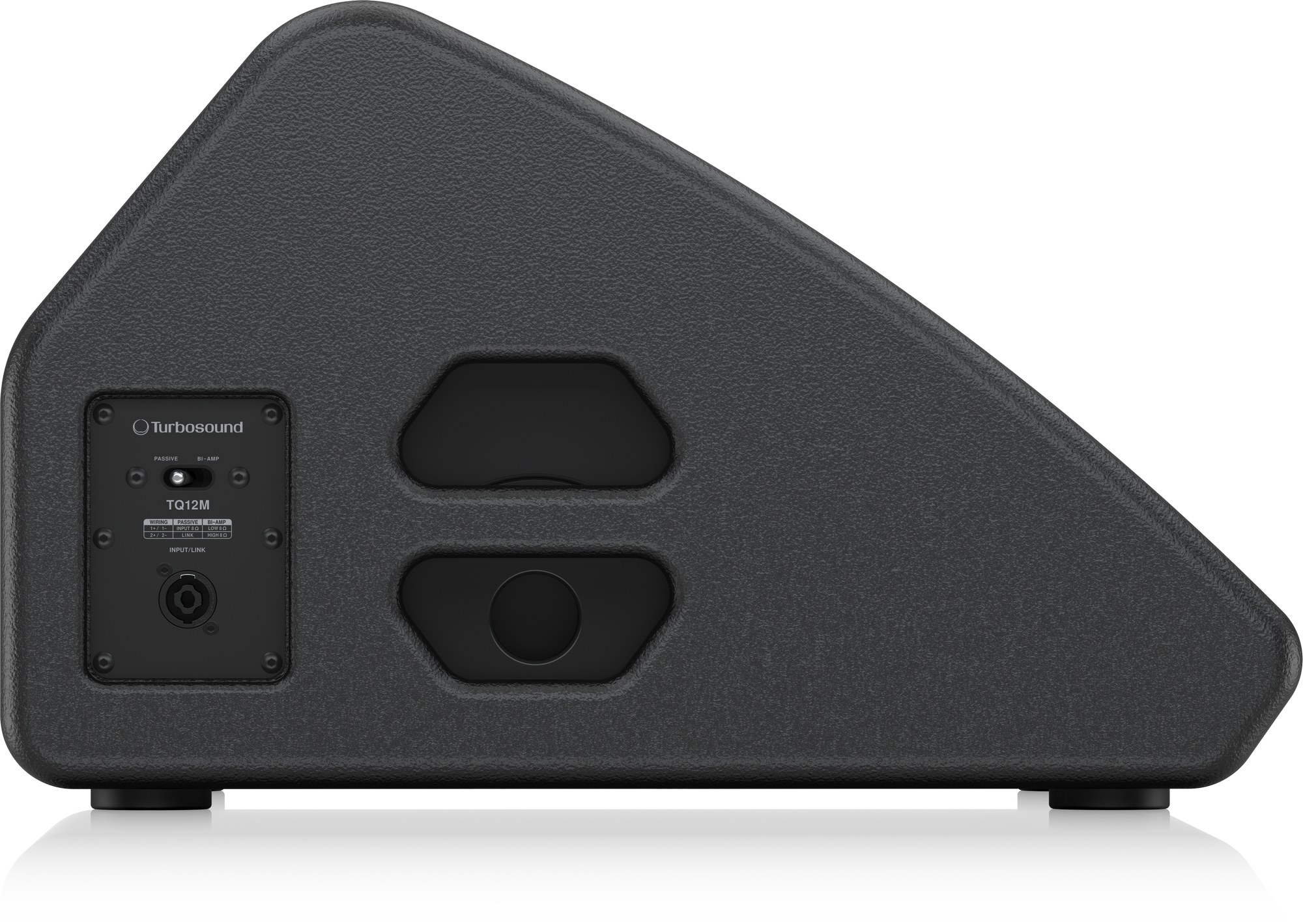

It includes a switchable passive/bi-amp mode, giving flexibility for different system setups. The durable construction is made from plywood and finished in semi-matt PU black paint, with a powder-coated steel grille for protection. The speaker also features side handles for easy transport, a 35mm pole mount for easy setup, and twist-lock connectors for secure connections.

The TQ12M is engineered for reliability and high performance, with its horn also serving as a heatsink to prevent overheating, making it perfect for demanding stage applications.
